Pro King 12 XLT $9495
​
The Biggest!The Baddest! The Tallest! Portable 4 post on the market
​
12,000 lbs capacity
​
OVERALL WIDTH 131″
OVERALL LENGTH 234.5″
HEIGHT OF POST 113.5″
MAX RISE 95.5″
MAX CLEARANCE 90″
WIDTH BETWEEN POSTS 115.75
LENGTH OF RUNWAY 221.5″
LIFTING TIME 55 SEC
SHIPPING WEIGHT 2980 LBS
INCLUDED WITH THE PRICE
48″ Aluminum Ramps
Rolling Jack Tray
Wheel blockers
Castor Kit
Ask about optional drip trays
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
Safety Locks & “Cable Slack” Locks
All 4 corners of the Pro King 9 lift come standard with 3/4″ thick safety locks that engage simultaneously as the lift passes each lock notch. Add in the addition of a secondary “cable slack” lock on each corner and you have safety on top of safety in case of a very unlikely cable failure. Lastly, both the main and secondary locks are held tightly in place to the post by the wrap-around design of our cross beams.
​
Wrap Around Crossbeams
5″ x 5″ structural steel posts in combination with computer-guided laser cut lock notches allow us to offer a superior, more rigid and incredibly strong post. Combine this with a 5/8″ thick by 12″ x 12″ base plate and you get a structural post that is as supportive as it is rigid. When working in conjunction with our 2″ x 4″ crossbeam that wraps around the post to offer not only front-to-back but also side-to-side stability you get a lift that comfortably allows you to raise and lower your vehicle.
​
​
​
​
​
​
​​
​
​
​
​
​
​
​

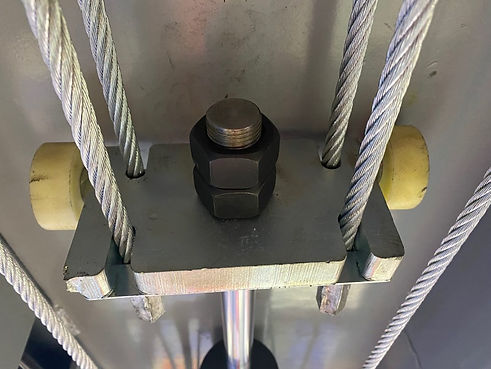

While under load the hydraulic ram twists slightly which could limit operation as well as damage the underside of a lift. However, all Pro King 9 lifts come with a bracket that has wheels mounted to it to allow the ram to easily and smoothly operate in and out without contacting or causing damage to itself on the bottom of the runway.
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
